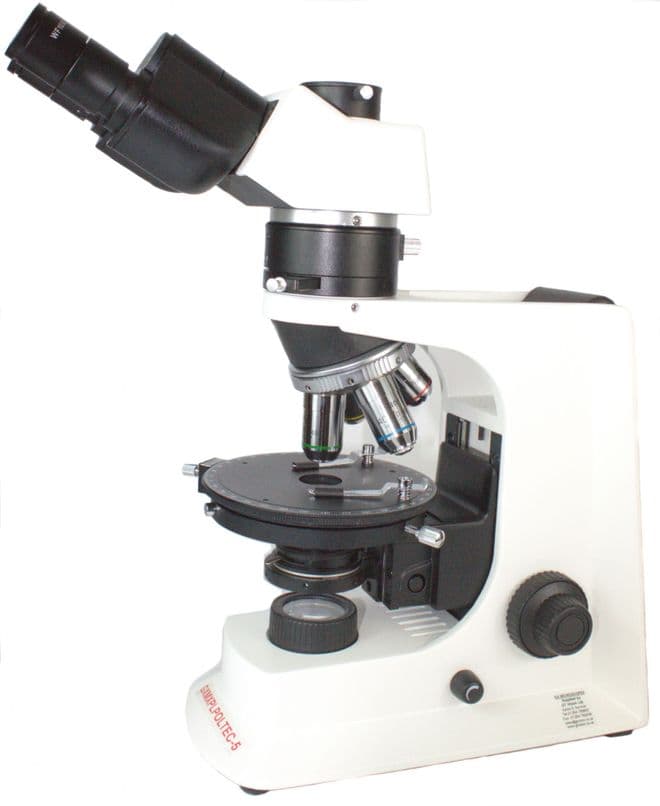

XPLPOLTEC-5 Trinocular, Transmitted Light with Compact Stand Polarising Microscope
XPLPOLTEC-5 Trinocular, Transmitted Light with Compact Stand Polarising Microscope

XPLPOLTEC-5 Trinocular, Transmitted Light with Compact Stand Polarising Microscope

Product code: UM1137B
Trinocular, Transmitted Light with Compact Stand Polarising Microscope

XPLPOLTEC Series of Great Value, Advanced Design, Modern Polarising Microscopes.

There are 5 Models in this our latest addition of microscopes to our extensive polarising microscope range, the main characteristics of this series are:

  • Superior infinity corrected optics
  • Plan achromatic objectives giving optimum clarity and flatness of field
  • Strain-free glass in the optics, designed specifically for polarised light microscopy
  • Objective centration for each objective position on the objective nosepiece/turret.
  • Reversed nosepiece/objective turret
  • Rotating circular stage with specimen clips and full graduations with position lock
  • Retractable, rotatable Bertrand Lens
  • A range of waveplate inserts including 4 orders quartz wedge, quarter wavelength compensator and first order red waveplates
  • Analyser
  • Cable storage
  • Carry Handle
  • Modern ergonomic, compact design microscope stands (there are two stand types in the range)
  • Widefield Eyepieces including an extra eyepiece with a crosshair and graduated micrometer scale
  • NA1.25 Abbe Condenser with integrated, rotatable polariser with graduations
  • Halogen/LED illumination (please see the specifications tab to check the illumination type for specific models)
  • Binocular and trinocular models
  • Incident and transmitted light models with corresponding objectives
  • Lifetime warranty (conditional) from the UK GT Vision factory

NAME IN SELECTION LIST HEAD STAND & STAGE NOSEPIECE & OBJECTIVES POLARISING PARTS ILLUMINATION

X-5 Trans Trino Compact

Model:

POLTECH-5

Trinocular

Inclined 30°, Rotatable 360°,
Interpupilary Distance:  50-75mm.
Light Distribution: 20:80

Pair Widefield 10x Eyepieces FN18

Widefield 10X Eyepiece with crosshair and micrometer scale

Optional Camera Adapters

Compact Routine Grade Stand

Rotating circular stage with specimen clips and full graduations with position lock

Carry Handle

QuadrupleNosepiece with Centratable Objective Positions

4X, 10X, 20X, 40X Plan Axhromatic Strain free Objectives

60X Optional

Retractable, Rotatable Bertrand Lens - Centre Adjustable

A range of waveplate inserts including 4 orders quartz wedge, quarter wavelength compensator and first order red waveplates

Analyser

Strain-free NA1.25 Abbe Condenser with integrated, rotatable polariser with graduations and lock

 Transmitted LED Illumination
product review overlay image

Customer reviews

No reviews left yet
Write a review

No reviews have been left for this product, be the first to leave a review
Brand Ultramacro
Condition New
Product Code UM1137B
Weight 10kg
