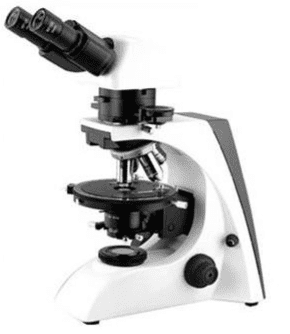

UM1136B Series of Great Value, Advanced Design, Modern Polarising Microscopes.
There are 5 Models in this our latest addition of microscopes to our extensive polarising microscope range, the main characteristics of this series are:
- Superior infinity corrected optics
- Plan achromatic objectives giving optimum clarity and flatness of field
- Strain-free glass in the optics, designed specifically for polarised light microscopy
- Objective centration for each objective position on the objective nosepiece/turret.
- Reversed nosepiece/objective turret
- Rotating circular stage with specimen clips and full graduations with position lock
- Retractable, rotatable Bertrand Lens
- A range of waveplate inserts including 4 orders quartz wedge, quarter wavelength compensator and first order red waveplates
- Analyser
- Cable storage
- Carry Handle
- Modern ergonomic, compact design microscope stands (there are two stand types in the range)
- Widefield Eyepieces including an extra eyepiece with a crosshair and graduated micrometer scale
- NA1.25 Abbe Condenser with integrated, rotatable polariser with graduations
- Halogen illumination (optional LED upgrade available, please see the accessories list below to add this)
- Binocular and trinocular models
- Incident and transmitted light models with corresponding objectives
SPECIFICATIONS :
| NAME IN SELECTION LIST | HEAD | STAND & STAGE | NOSEPIECE & OBJECTIVES | POLARISING PARTS | ILLUMINATION |
|
X-2 Trans Trino |
Trinocular Inclined 30°, Rotatable 360°,
Interpupilary Distance: 50-75mm. Light Distribution: 0:100 Pair Widefield 10x Eyepieces FN20 Widefield 10X Eyepiece with crosshair and micrometer scale Optional Camera Adapters |
Research Grade Stand Rotating circular stage with specimen clips and full graduations with position lock Carry Handle |
Nosepiece with Centratable Objective Positions 4X, 10X, 20X, 40X Plan Achromatic Strain free Objectives 60X Optional |
Retractable, Rotatable Bertrand Lens - Centre Adjustable A range of waveplate inserts including 4 orders quartz wedge, quarter wavelength compensator and first order red waveplates Analyser Strain-free NA1.25 Abbe Condenser with integrated, rotatable polariser with graduations and lock |
Koehler Illumination 6V 20W Halogen Transmitted Light (optional LED, please see accessories list below to add this) |
Customer reviews
| Brand | Ultramacro |
| Condition | New |
| Product Code | UM1136B |
| Weight | 10kg |
