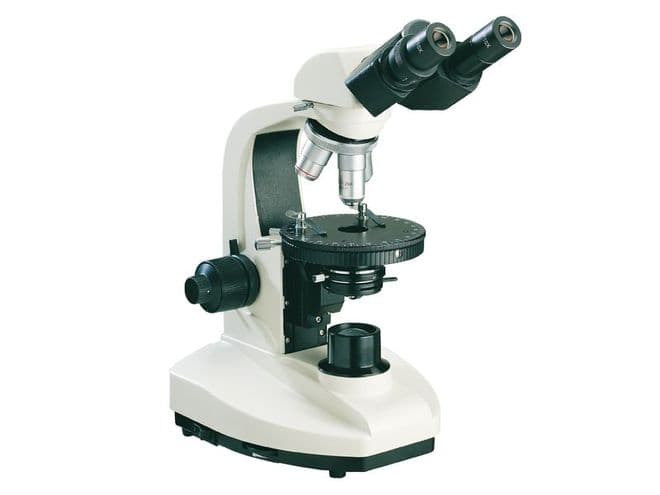

UM1135B 40X-400X, Teaching, Trinocular, Transmitted Light, Polarising Microscope
Product code:
UM1135B
Trinocular (binocular version shown in some pictures), Transmitted Light Illuminated, polarising Microscope suitable for observing polarasable materials such as geological thin sections.
£485.83
£583.00 (inc. VAT)
This microscope is a Teaching and Amateur Grade, Trinocular (binocular version shown in some pictures), Transmitted Light Illuminated, Polarising Microscope suitable for observing polarasable materials such as geological thin sections. This microscope has a trinocular head suitable for attaching a camera (requires a camera specific adapter), a pair 10X eyepieces with a crosshair, 4 Achromatic, Strain-free, Centerable Objectives 4X, 10X, 20X, 40X (optional 60X, 100X objectives), a rotating, centerable stage, a Retractable Analyser in Head, Rotatable polariser, 6V 20W transmitted light, Abbe Condenser, adjustable intensity halogen lights and Coarse/fine focus with adjustable tension and limit stopper
The UM1135 is equipped with a smooth, rotating, graduated stage and a set of polarisers that allow observation of all types of transmitted light polarised specimens such as thin sections of minerals, polymers, crystals and particulates. This model, is part of Ultramacro's new range of polarising microscopes, it is affordable by amateur microscopists, schools and colleges.
It is equipped with a comfortable viewing, adjustable binocular head and a fine set of achromatic objectives giving a magnification range of 40X – 1000X. The analyser mounted in the head is retractable and the polariser is mounted over the collector near the lamp and is rotatable though 360deg
The microscope is also supplied with a rack and pinion mounted, adjustable condenser with a 20W illumination source
The UM1135 is equipped with a smooth, rotating, graduated stage and a set of polarisers that allow observation of all types of transmitted light polarised specimens such as thin sections of minerals, polymers, crystals and particulates. This model, is part of Ultramacro's new range of polarising microscopes, it is affordable by amateur microscopists, schools and colleges.
It is equipped with a comfortable viewing, adjustable binocular head and a fine set of achromatic objectives giving a magnification range of 40X – 1000X. The analyser mounted in the head is retractable and the polariser is mounted over the collector near the lamp and is rotatable though 360deg
The microscope is also supplied with a rack and pinion mounted, adjustable condenser with a 20W illumination source
Additional product information
| Eyepieces and Objectives | Pair of 10X Widefield FN20 Eyepieces, 4X, 10X, 20X & 40X Achromatic Objectives. Optional Objectives: 60X &100X oil |
| Head | Trinocular Head suitable for use with a camera (requires the appropriate adapter) with interpupiliary adjustment and diopter adjustment for the eyepiece tubes. |
| Stand & Focus Mechanism | Coarse/Fine focus mechanism, limit stopper and tension adjustment. |
| Stage and Condenser | 360° rotatable 30mm x 40mm travel, centerable. |
| Illumination | Transmitted Light - LED Adjustable Halogen Illumination |
Customer reviews
| Brand | Ultramacro |
| Condition | New |
| Product Code | UM1135B |
| Weight | 4kg |
