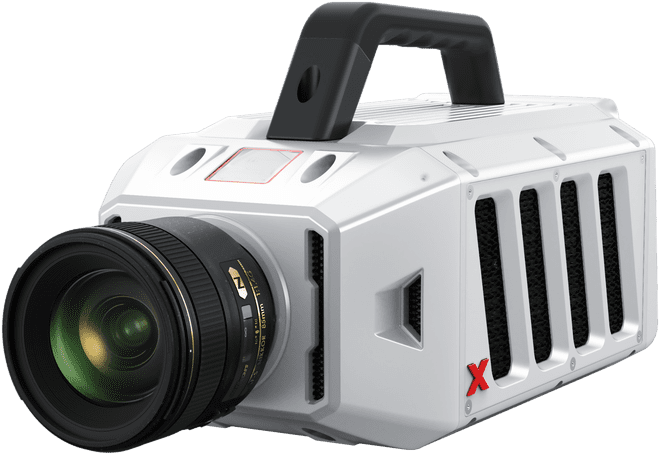

UM-X-213 High Speed Camera, High Res, C-Mount GBit, Fast. Max 16.9k fps
Revealer X Series high-speed Cameras are high quality, high speed devices built by Qianyanlang designed for scientific research. Equipped with high a transfer bandwidth of up to 16GB/s delivering powerful data collection and processing capabilities.
The key advantages of this technology are massive data throughput (1280x1024 at 13,600 FPS), professional image quality incorporating a dedicated ISP processing chip with automatic white balance, colour correction, gamma, defogging, denoising, sharpening and other modules.
UM-X-M213 High Speed Camera - Revealer Series
Summary
- Up to 13,600 FPS at 1280x1024 resolution
- Monochrome or colour
- 256GB of internal memory
- 1,000,000 FPS at 128x8 pixels region of interest
- E-mount (c-mount available, please enquire)
- GigE Interface
- Triggering available
- 160W with AC
- Size: 170mm x 185mm x 304mm (may vary according to specification)
- Weight: less than 6.4 kg (may vary according to specification)
- (lens not included, lenses, microscopes and microscope adapters can be supplied)
Description
Revealer X Series high-speed Cameras are high quality, high speed devices built by Qianyanlang designed for scientific research. Equipped with high a transfer bandwidth of up to 16GB/s delivering powerful data collection and processing capabilities.
The key advantages of this technology are massive data throughput (1280x1024 at 13,600 FPS), professional image quality incorporating a dedicated ISP processing chip with automatic white balance, colour correction, gamma, defogging, denoising, sharpening and other modules.
Features:
◆ Ultra-high speed recording rate, large data throughput
Full frame capture at 13,6000 FPS.
◆ Continuous recording
256GB (larger memory is available) large-capacity high-speed RAM storage, supports continuous shooting for up to 16.2s at full resolution.
◆ Broadcast-level picture quality
dedicated ISP processing chip with automatic white balance, colour correction, gamma, defogging, denoising, sharpening and other modules.
Frame rate and format
Max resolution = 1024x1024 Up to 13,600 FPS at resolution
Max fps at max resolution = 13,600fps
Max fps = 1,000,000fps at 8x128
Camera control software
Camera control software for PC is supplied free of charge with every camera.
Example Applications
Defence Applications
Impact analysis & ballistics
Production Machines
Welding, press machine/printing machine behaviour, failure cause analysis
R&D
Crash test, structure collapse, vehicle movement, electric arcs
Image analysis
Any PIV/Motion capture experiment of fast phenomena
Microscopy
Microorganism/sperm/metal stock behaviour
Customer reviews
| Max Frame Rate (frames/sec) | 1,000,000 |
| Max Resolution (pixels) | 1280x1024 |
| Synchronous Multi-Camera Support | No |
| Min. Shutter Speed (microsecs) | 1 |
| Low Light Suitable | Yes |
| Sensitivity | not specified |
| Built-in Fast Memory (GB) | 256 (up to 1TB available) |
| Trigger Function | TTL |
| Mount | E-Mount (C-mount available, special order) |
| Interface | GigaBit |
| Brand | Revealer |
| Condition | New |
| Product Code | UM-X-213 256GB-C |
| Weight | 6.4kg |
