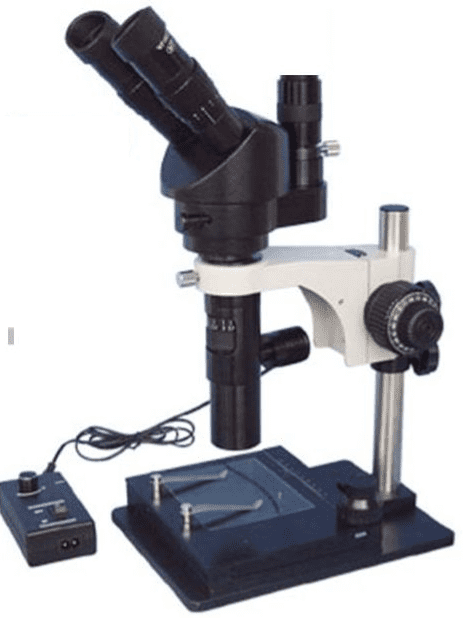

UM1127B Monozoom Microscope Series 15X-1350X, Trinocular

If you need outstanding quality, high contrast, images then the compact UM1127B Monozoom Microscope Series is the obvious solution.  Designed specifically for industrial inspection and materials research applications this microscope offers a host of advantages to the user:

• A huge choice of magnifications from 15X to 1350X
• Zoom magnification
• Large Zoom Ratio of 1:6.7 (1.5x-10x)
• Direct Viewing Optics from the Monozoom Body
• Superb quality, High Contrast images to the eyepieces and camera port
• This is one of the very few monozoom systems with a binocular and trinocular head facility
• The bright, adjustable coaxial LED illumination is perfect for  looking at metallurgical specimens, PCBs, IC circuits, electronic components, plastics, surfaces, insects and almost every kind of material
• On some models the pillar stand is supplied with a very useful XY stage enabling convenient and accurate position of your subject simple
• The microscope is held in a focussing ring with a precise coarse and fine focus mechanism, necessary particularly for high magnifications and precise, height determining applications.
• Working distance of up to an amazing 175mm
• With the optional C-mount:T-Mount DSLR Adapter you can add your DSLR camera to this microscope system - please ask for advice.

There is a huge range of accessories available for this microscope, just a few configurations are shown in the model selection but with these accessories you can build your own system to meet your specific needs. See the accessories list below for just some of the accessories available, many more choices are available - please ask.

Choice of stands:

• Pillar stands - a choice of stands with different size bases including XY Stage bases (These stands are recommended for very high magnifications)
• Track Stands -a choice of stands with different size bases including XY Stage bases (These stands are recommended for very high magnifications)
• Long Reach Boom Arm Stands - Substantial vertical pillars with single or dual horizontal arms and ends which can be angled into any position
• Long Reach Articulated Arm Stands.

Track Stands (coarse focus or coarse and fine focus) available with illumination variants also​​​​​​​

High Track Stand with XY stage (there are several variants of this, only one is listed here, please ask about the others)

High Track stand  (coarse focus or coarse and fine focus) available with illumination variants also.

Long Reach, G-Clamp Articulated Arm Stand

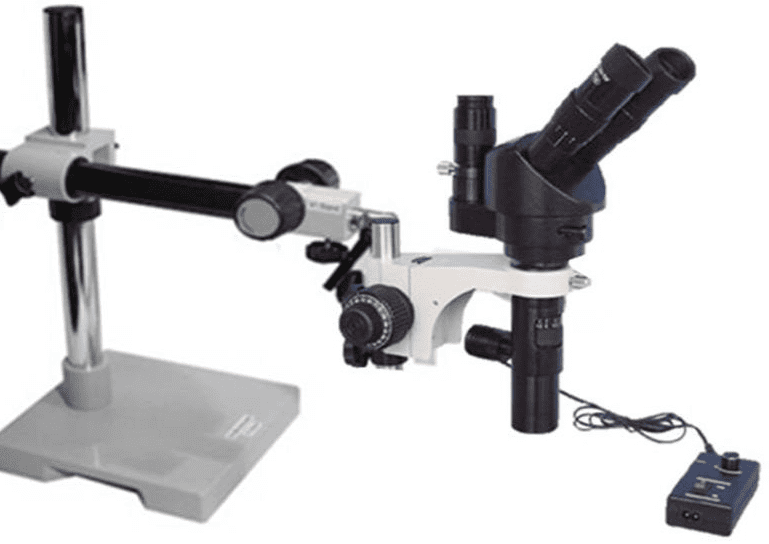

Long Reach, G-Clamp Boom Arm Stand

Long Reach, Desk Base Articulated Arm Stand

Long Reach, Desk Base Boom Arm Stand

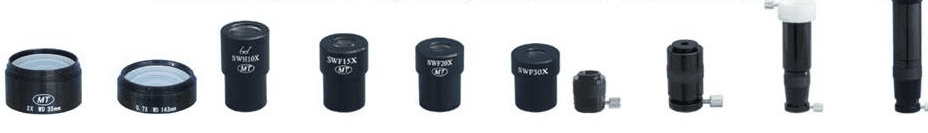

​Choice of Optics:

• Select different magnification objectives (these screw onto the end)
• Select different magnification eyepieces
• Select different magnification camera couplers

​Choice of cameras - see our large range of quality cameras
