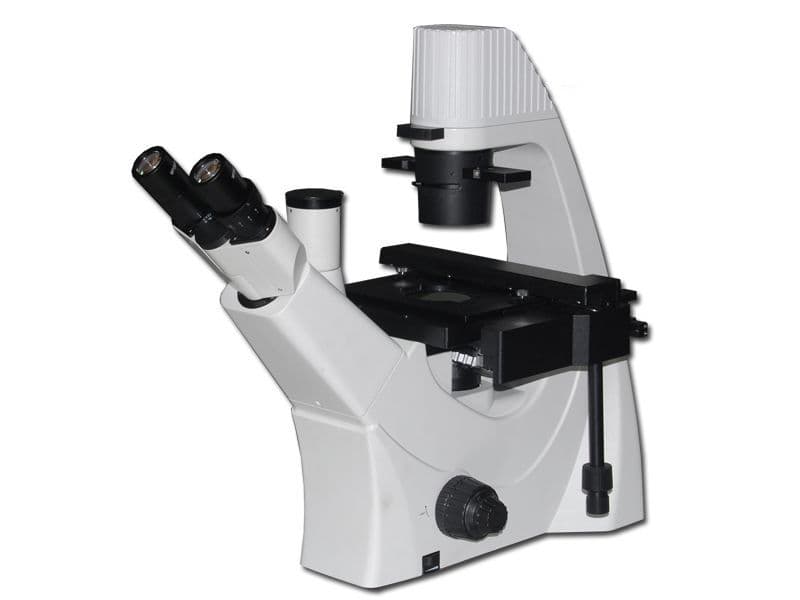

Top of the Range, Superb Quality Research Grade Biological Inverted Phase Contrast Microscope comprising of:
Trinocular Head with Camera Port with optional adapters to accept a wide variety of cameras, Pair 10X Widefield FN22 Eyepieces and a centering telescope for phase set-up, Inverted Quintuple Nosepiece, Infinity Corrected Optics, 4X Brightfield, 10X Phase & Brightfield, 20X Phase & Brightfield, 40X Phase & Brightfield, Plan Achromatic, Long working Distance Objectives, Large Mechanical Stage equipped with a range of petri dish and culture flask holders, Ergonomic Coaxial Coarse/Fine Focus, Long Working Distance Centerable Phase Condenser with Phase Slider Inserts , Large Stable Stand, Extremely Bright White LED Adjustable 5W Light, Set of Filters including frosted, blue, yellow and green, Tools and a Large Range of Accessories
This substantial, superbly engineered microscope has been specially developed to produce exceptionally high quality, high contrast phase contrast and brightfield images of your specimens. The controls are ergonomically positioned and the large stage, with its range of standard accessories, allows you to observe almost all classes of specimens on the microscope.
Additional product information
| Brand and ID Number | Ultramacro UM1120B |
| Eyepieces and Objectives | Pair of 10X Widefield FN22 Eyepieces mounted in a 30mm internal diameter eyepiece tube, parfocality 10mm. Centering telescope for phase set-up. Infinity Corrected Optics, 4X Brightfield, 10X Phase & Brightfield (WD 19.4mm, glass correction 1.2mm), 20X Phase & Brightfield (WD 8.0mm, glass correction 1.2mm), 40X Phase & Brightfield (WD 3.5mm, glass correction 1.2mm), Plan Achromatic, Long working Distance Objectives. Objectives are mounted on a Quintuple revolving nosepiece. |
| Head | Trinocular Head with camera port with interpupiliary adjustment and diopter adjustment for the eyepiece tubes. The camera port accepts camera adapters. There is a photo/eyepiece lever. Inclination 45°，camera output has 100% of light. Interpupillary distance adjustment range：48 ~75mm |
| Stand & Focus Mechanism | Substantial, high stability, research grade, stylish inverted microscope stand equipped with a coaxial coarse/fine focus mechanism with sample protection lock. 2 micron fine focus knob graduation marks. Handle on rear. |
| Stage and Condenser | Large, smooth, mechanical stage: size:300mm X 170mm；movement range: 75mm (longitudinal) X 132.5mm (transverse), Stage plate holders included: circular petri /culture dishes：28mm to100mm diameter，Thickness≤1.2mm. rectangular microtitre plates and culture flasks Width≤100mm, Length≤130mm, Thickness≤1.2mm. Long working distance phase contrast condenser with slider inserts mounted on a 'breadboard' style slider. Centre adjustable. |
| Illumination | Adjustable, very bright white 5W LED illumination superb for phase work. Includes blue, green, yellow and frosted filter set. |
Customer reviews
| Brand | Ultramacro |
| Condition | New |
| Product Code | UM1120B |
| Weight | 15kg |
