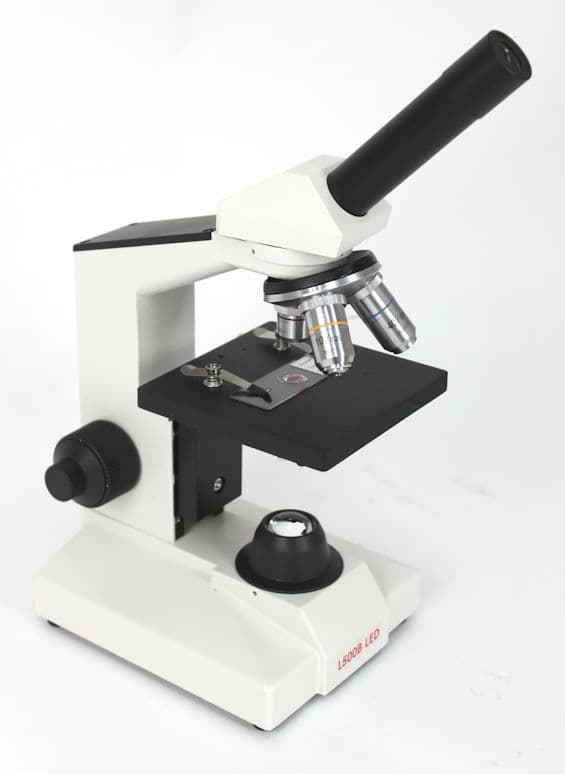

GXM-L500LED Series 40X-400X Teaching, Biological, Monocular Microscopes Portable Version
GXM-L500LED Series 40X-400X Teaching, Biological, Monocular Microscopes Portable Version
GXM-L500LED Series 40X-400X Teaching, Biological, Monocular Microscopes Portable Version
GXM-L500LED Series 40X-400X Teaching, Biological, Monocular Microscopes Portable Version
GXM-L500LED Series 40X-400X Teaching, Biological, Monocular Microscopes Portable Version

GXM-L500LED Series 40X-400X Teaching, Biological, Monocular Microscopes Portable Version

Product code: UM1142C

A popular Teaching Grade Microscope, superbly robust with a compact footprint and a number of optional accessories comprising of: Monocular Head, Triple Nosepiece, 4X, 10X, 40X Achromatic Objectives, 10X Eyepiece (fn18mm). Plain Stage with Slide Clips, Coaxial Coarse/Fine Focus, Abbe Condenser on Rack & Pinion, LED Light and a Range of Accessories

This high quality microscope is equipped with a set of high contrast, glass, achromatic objectives, a wide-field eyepiece, a metal stand and a brass cogged focus mechanism to provide a clear and bright image of the subject under observation. The GXM-L500BLED has 3 achromatic objectives giving a magnification range from 40X to 400X. It has a clip stage and a simple condenser. The monocular eyepiece tube has an inclination of 45deg and can be rotated through 360deg, ideal for shared use. The microscopes provide comfortable viewing and are simple and safe to operate. This model has LED illumination, coaxial coarse and fine focus knobs. These microscopes are widely used in schools, by amateur microscopists and by professionals in a number of field such as veterinary sciences and breeding

There are two models of microscope in this series:

Product ID Product Name Description
4727 GXM L500 Mains only version
0428 GXM L500 RECH Mains and rechargeable batteries version (batteries not included)

Additional product information

Brand and ID Number GX Microscopes Brand by GT Vision Ltd Product ID4727
Eyepieces and Objectives 10X Widefield FN18 Eyepiece Three: 4X, 10X, 40X, Achromatic Objectives
Head Monocular rotatable head
Stand & Focus Mechanism Highly robust teaching grade, small footprint stand equipped with a coaxial coarse/fine focus mechanism with sample protection lock.
Stage and Condenser 120 X 120mm Plain Stage with clips to hold slides and single lens codenser with iris diaphragm or disc diaphragm
Illumination LED
product review overlay image

Customer reviews

No reviews left yet
Write a review

No reviews have been left for this product, be the first to leave a review
Brand GX Microscopes
Condition New
Product Code UM1142C
Weight 5kg
