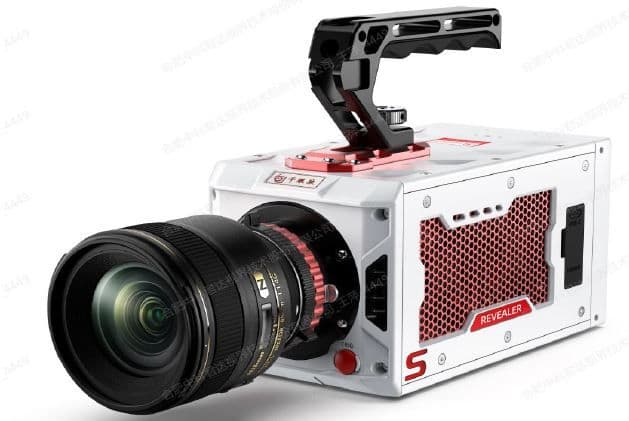

UMS-1310-C Super Speed Camera - High Res  10,000 fps at 1.2MP, F-Mount, USB3, 192Gb, Max 800k fps

Super-High Speed and High Resolution with massive internal fast memory - UMS-1310-C Super Speed Camera - High Res 10,000 fps at full 1.2MP, F-Mount, GigE, 192Gb, Max 800k fps

S Ultra-High-Speed series are high-end and high-quality cameras for high-precision scientific research, aerospace and high-speed industrial fields with top performance parameters, special features and powerful data acquisition, storage and processing capabilities.

Summary

• Choice of colour or monochrome cameras (choose monochrome for higher speeds)
• 10,000 FPS at 1280x1080 resolution!
• Max resolution 1920x1080
• 192 GB of internal memory
• Up to 800,000 FPS at 1280×8 resolution
• F-mount
• 1Gigabit + 10GbE Dual Interface connection (PC / tablet)
• Multi-camera connection, synchronisation and control are possible
• Size (mm): 110×110×205
• Weight: 3.8 kg
• SDI video output supports real-time screen preview and slow playback in the export preview state (selectable settings)
• Pixel size 14.6μm Sensor
• (lens not included, lenses, microscopes and microscope adapters can be supplied)

Description

One of our highest performance cameras.
Supports ROI acquisition window setting, resolution, frame rate linkage adjustment, resolution, auto exposure, EDR secondary exposure, internal and external synchronisation.
Triggering via rising edge, falling edge, low level, high level, other external signals and automatic triggering of image changes within a 10x10 pixel area.
Standard shutter release cable to control shooting and saving, one-touch recording function.
Automatic white balance, dark field correction, intelligent denoising, Gamma correction, colour
optimization module. Supports PIV cross-frame exposure for non-contact measurement of PIV, PTV, etc.
