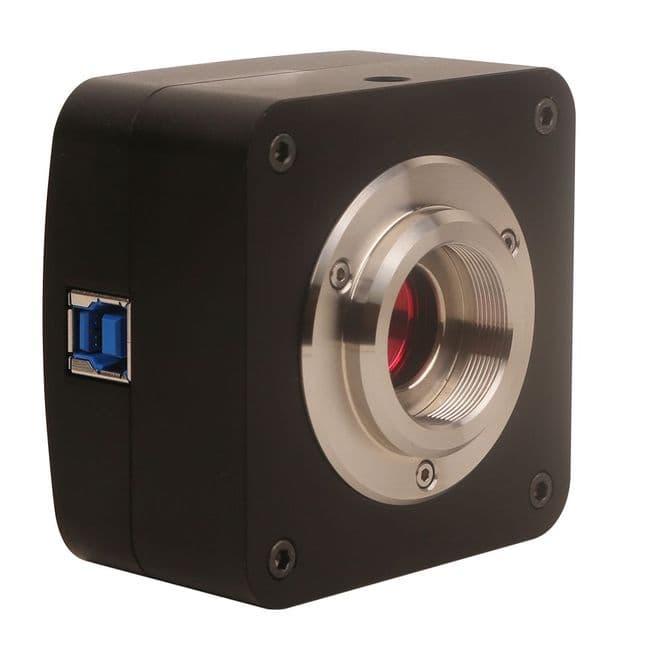

The GXCAM-U3 series is the latest range of outstanding value for money, top quality, USB-3 microscopy cameras with superfast refresh rates. There are 5MP & 18MP versions. Each is a Digital, USB-3, C-Mount Camera with Powerful GXCapture Software. Producing a stunning, top quality, low noise image with good colour reproduction with a fast live refresh rate, all managed by the fully featured software. These cameras attach to any c-mount camera adapter including eyepiece tube adapters.
About C-mount camera adapters: These are standard microscope accessories available to fit onto photoport of trinocular headed microscopes, c-mounts can also be found on monozoom microscopes. It is a specific length tube with a 1inch threaded hole at the camera end, many have lenses within them. (microscope shown in pictures is not included and the style and colour of the camera case is constantly being updated and therefore changes)
The sofware is quick and easy to install and is supplied on media with the camera and we provide free, downloadable, updates.| Digital Camera Specifications |
|---|
|
GXCAM-U3-5 5.1MP resolution camera, 1/2.5" Very Latest CMOS sensor |
|
Image previewing rate: dependent on resolution selected - see below |
|
Selectable resolution (typical frames per second@resolution in pixels): |
|
Video format: 15-30 FPS for recording of video sequences |
|
White balance setting options: Manual / Automatic / Preset |
|
Programmable controls: Gain, Frame Rate, Exposure |
|
Sensitivity and Noise: |
|
Dynamic range: |
|
Colour filter array: RGB Bayer pattern |
|
Connection Physical : C-Mount interface Connection Digital: USB 3.0 Power Supplied via USB also |
| GX Capture Software Specifications (Over 200 functions in a modern interface) |
|
Camera Control: Colour Balance, Resolution, Exposure incl .Auto Exposure, Gain |
|
File Formats: 10 file formats including JPG with user definable compression plus several video formats |
|
Image Processing: LIVE Flat field Correction, Extended Focus, Image Tiling, Reduce/ Increase bits/pixel, Resize, Mirror/Rotate/Flip, Transparency, Greyscale, Histogram display, Histogram equalisation and stretching, Image sharpening and smoothing filters, FFTs, Image colour component splitting, Image merging for multiprobe fluorescence |
|
Measurements: Line, Point Count, Area (square, circle, polygon), Calibration, Exportable results table |
|
Other Specifications |
|
Weight: 250gms USB Cable: Included 1.5m Manual: Included |
Customer reviews
| Resolution | 5.1 MP |
| Interface | USB-3 |
| Brand | GXCAM |
| Condition | New |
| Product Code | UM1180B |
| Weight | 0.5kg |
