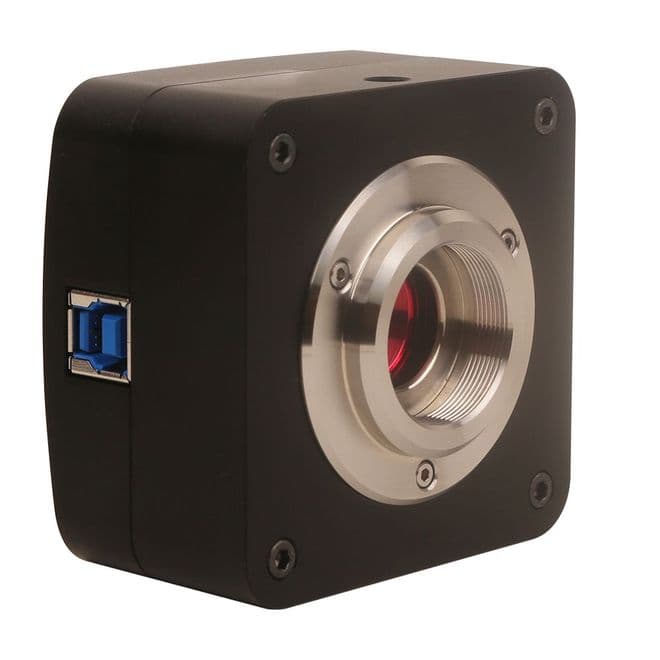

GXCAM-U3 18MP Great Value, USB-3, C-Mount Microscope Camera

GXCAM-U3 18MP Great Value, USB-3, C-Mount Microscope Camera

Name: GXCAM-U3 18MP Great Value, USB-3, C-Mount Microscope Camera
Brand: GXCAM
SKU: UM1181B
Price: 669.52 GBP
Availability: InStock

Product code: UM1181B

Description

The GXCAM-U3 series is the latest range of outstanding value for money, top quality, USB-3 microscopy cameras with superfast refresh rates. There are 5MP & 18MP versions. Each is a Digital, USB-3, C-Mount Camera with Powerful GXCapture Software. Producing a stunning, top quality, low noise image with good colour reproduction with a fast live refresh rate, all managed by the fully featured software. These cameras attach to any c-mount camera adapter including eyepiece tube adapters.

About C-mount camera adapters: These are standard microscope accessories available to fit onto photoport of trinocular headed microscopes, c-mounts can also be found on monozoom microscopes. It is a specific length tube with a 1inch threaded hole at the camera end, many have lenses within them. (microscope shown in pictures is not included and the style and colour of the camera case is constantly being updated and therefore changes)

The software is quick and easy to install and is supplied on media with the camera and we provide free, downloadable, updates.

Digital Camera Specifications
GXCAM-U3-5 5.1MP resolution camera, 1/2.5" Very Latest CMOS sensor GXCAM-U3-18 18MP resolution camera, 1/2.5" Very Latest CMOS sensor
Image previewing rate: dependent on resolution selected - see below
Selectable resolution (typical frames per second@resolution in pixels): GXCAM-U3-5 5.1MP 14.2@2560x1922 38.3@1280x960 101.2@640x480 GXCAM-U3-18 18MP 6.2@4096x3286 20.8@2048x1644 53.3@1024x822
Video format: 15-30 FPS for recording of video sequences
White balance setting options: Manual / Automatic / Preset
Programmable controls: Gain, Frame Rate, Exposure
Sensitivity and Noise: GXCAM-U3-5 5.1MP 1.76v/Lux-sec 38.5dB GXCAM-U3-18 18MP 0.62 V/lux-sec 36.3dB
Dynamic range: GXCAM-U3-5 5.1MP 67.74dB GXCAM-U3-18 18MP 65.8dB
Colour filter array: RGB Bayer pattern
Connection Physical : C-Mount interface Connection Digital: USB 3.0 Power Supplied via USB also
GX Capture Software Specifications (Over 200 functions in a modern interface)
Camera Control: Colour Balance, Resolution, Exposure incl .Auto Exposure, Gain
File Formats: 10 file formats including JPG with user definable compression plus several video formats
Image Processing: LIVE Flat field Correction, Extended Focus, Image Tiling, Reduce/ Increase bits/pixel, Resize, Mirror/Rotate/Flip, Transparency, Greyscale, Histogram display, Histogram equalisation and stretching, Image sharpening and smoothing filters, FFTs, Image colour component splitting, Image merging for multiprobe fluorescence
Measurements: Line, Point Count, Area (square, circle, polygon), Calibration, Exportable results table
Other Specifications
Weight: 250gms USB Cable: Included 1.5m Manual: Included
