Mitutoyu Microscope Objectives

Name: Mitutoyu Microscope Objectives - 10X
Brand: Mitutoyu
SKU: UM1085C
Price: 958.80 GBP
Availability: InStock

Product code: UM1085C

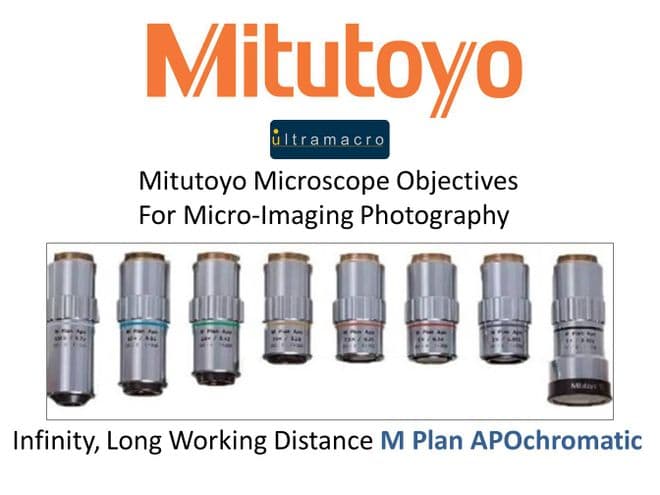

selection of the most popular, absolutely superb Japanese made Mitutoyo microscope objectives

Description

A selection of the most popular, absolutely superb Japanese made Mitutoyo objectives commonly used for the very best photography experience at high magnifications.

This particular class of objective is known as MPLAN APO. The designation 'M' means that, they are designed for use with materials microscopes, ie they are designed for the transmission of light through the objective and then to receive the reflected image from a typically polished metallurgical subject. However this class of objective is also particularly well suited for microphotography as many users have testified in social media.
The 'Plan APO' designation means that these are the very best class of Plan APOchromatic objective with full colour corrections in all visible wavelengths, almost extinguished chromatic aberration in normal white light and a perfectly flat field, ideal for focus stacking without lens artefacts. It goes without saying that in achieving these attributes the questions of resolving power, colour accuracy and contrast are also extremely competently handled in this class of microscope objective.

Ultramacro can not only offer every magnification available in this series of Mitutoyu objectives but also all other families of objectives available from Mitutoyu. In this listing we have on offer the two most commonly purchased magnifications of 5X and 10X. Also available are 1X, 2X, two variants of 5X, 7.5X, two variants of 10X, two variants of 20X, three variants of 50X, three variants of 100X.

Please note that these objectives can be on quite a long delivery time.

Specifications

MPLAN APO Objective	5X	10X
Part Number	UM1084	UM1085
Magnification:	5X	10X
Compatible Tube Lens :	Focal length 200mm	Focal length 200mm
Numerical Aperture NA:	0.14	0.28
Depth of Focus (μm):	14.0	3.5
Focal Length FL (mm):	40.00	20.00
Mounting Thread:	M26 x 36TPI	M26 x 36TPI
Weight (g):	230	240
Wavelength Range (nm):	435 - 655	435 - 655
Length excluding Threads (mm):	61	61
Maximum Diameter (mm):	34	34
Resolving Power (μm):	2	1
