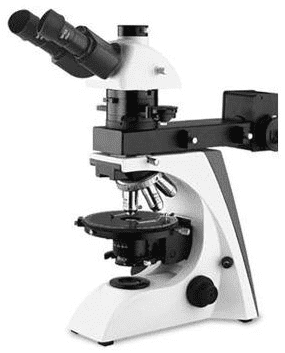

UM1138B Trinocular, Transmitted and Incident Light with Research Stand Polarising Microscope

UM1138B Trinocular, Transmitted and Incident Light with Research Stand Polarising Microscope

Product code: UM1138B
UM1138B Advanced Design, Modern Polarising Microscope

UM1138B Series of Great Value, Advanced Design, Modern Polarising Microscopes

There are 5 Models in this our latest addition of microscopes to our extensive polarising microscope range, the main characteristics of this series are:

  • Superior infinity corrected optics
  • Plan achromatic objectives giving optimum clarity and flatness of field
  • Strain-free glass in the optics, designed specifically for polarised light microscopy
  • Objective centration for each objective position on the objective nosepiece/turret.
  • Reversed nosepiece/objective turret
  • Rotating circular stage with specimen clips and full graduations with position lock
  • Retractable, rotatable Bertrand Lens
  • A range of waveplate inserts including 4 orders quartz wedge, quarter wavelength compensator and first order red waveplates
  • Analyser
  • Cable storage
  • Carry Handle
  • Modern ergonomic, compact design microscope stands (there are two stand types in the range)
  • Widefield Eyepieces including an extra eyepiece with a crosshair and graduated micrometer scale
  • NA1.25 Abbe Condenser with integrated, rotatable polariser with graduations
  • Halogen illumination (optional LED illumination, please see the accessories list below to add an LED upgrade)
  • Binocular and trinocular models
  • Incident and transmitted light models with corresponding objectives
product review overlay image

Customer reviews

No reviews left yet
Write a review

No reviews have been left for this product, be the first to leave a review
Brand Ultramacro
Condition New
Product Code UM1138B
Weight 15kg
