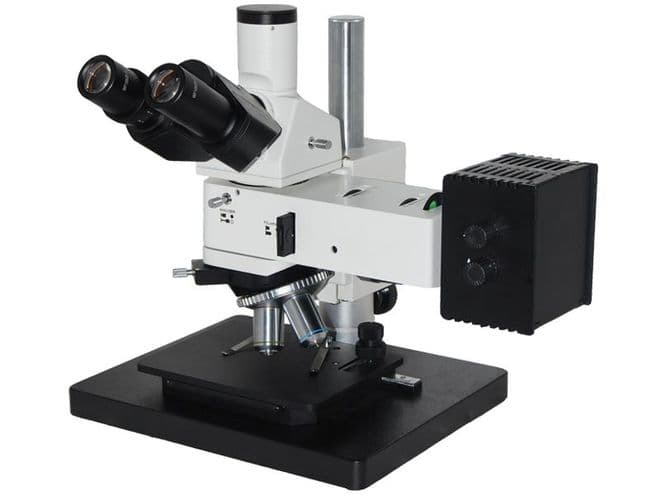

A very useful industrial inspection microscope suitable for viewing any reflective sample and is widely used in component inspection. The whole microscope is mounted on a pillar stand which allows the inspection of unusually large specimens. If required it is possible to mount the head on optional long reach boom arm stands It is equipped with a trinocular head ready for the attachment of a digital camera. This microscope includes a full set of high quality brightfield Plan Achromatic Infinity corrected materials objectives.
Specimens can placed on the mechanical stage with controls for XY stage movement. The focussing tension can be adjusted and a focus lock protects the objectives from damage. Illumination is provided from a reflected light illuminator with an LED lamp (equivalent to 50W halogen lamp) with adjustable intensity, field and aperture diaphragms, polariser and set of Y, G, B and diffusion filters. Options include a range of camera adapters, digital cameras, image analysis software, additional objectives and eyepieces.
Specimens can placed on the mechanical stage with controls for XY stage movement. The focussing tension can be adjusted and a focus lock protects the objectives from damage. Illumination is provided from a reflected light illuminator with an LED lamp (equivalent to 50W halogen lamp) with adjustable intensity, field and aperture diaphragms, polariser and set of Y, G, B and diffusion filters. Options include a range of camera adapters, digital cameras, image analysis software, additional objectives and eyepieces.
Additional product information
| Brand and ID Number | Ultramacro UM1123 |
| Eyepieces and Objectives | Pair of 10X Widefield Eyepieces, 5 LWD Plan Achromatic Objectives |
| Head | Trinocular head, 30 degree inclined eyepiece tubes, with interpupillary distance adjustment |
| Stand & Focus Mechanism | Substantial Stand, with coaxial Coarse/Fine Focus Mechanism, Tension Adjustable, Limit Stopper |
| Stage and Condenser | Abbe Condenser on Rack and Pinion |
| Illumination | Reflected light provided by an LED lamp (equivalent to 50W halogen) with adjustable intensity |
Customer reviews
| Brand | Ultramacro |
| Condition | New |
| Product Code | UM1123B |
| Weight | 19kg |
