M-Pro Series Pillar & Boom Arms Stands

Ultramacro's M-Pro series of pillar stands and boom arm long reach stands together with a choice of lens holders (we call them focussing rings) are ideal for any high magnification photography and perfect for use with our ultraVU high magnification lenses.

VIDEOS & BROCHURE

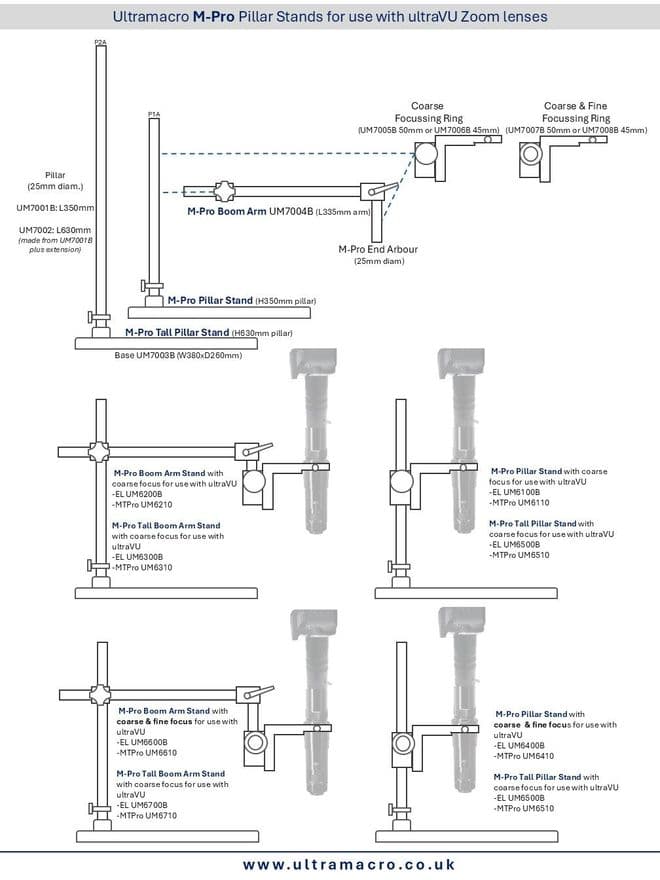

The stand Datasheet Diagram, Videos where the stands are frequently featured and  the ultraVU zoom lens brochure can be viewed on our DOWNLOADS PAGE

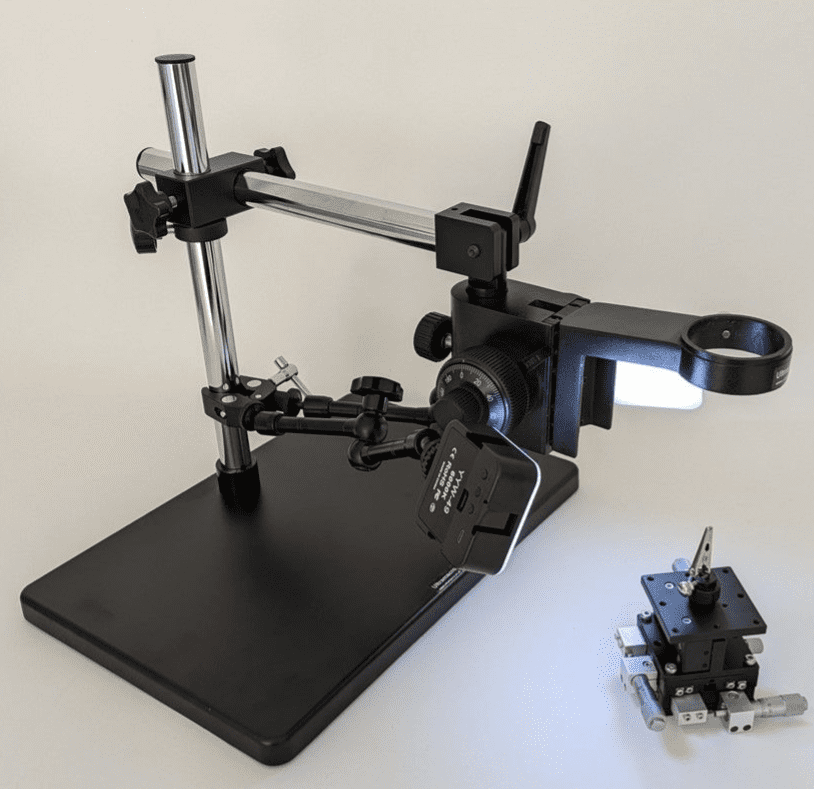

Many of the pictures show the stands in use with lenses, lighting and specimen stages which are optional extras.

Each M-Pro stand comprises of:

• A substantial black base 380mmW x 260mmD (part UM7003B)
• One of these vertical pillars:
  • 350mm long by 25mm diameter (part UM7001B)
  • tall vertical pillar 630mm long by 25mm diameter ( part UM7002) made up from UM7001B plus an extension
• One of these focussing rings:
  • Focusing Ring with Coarse Focus Knob and tension adjustment for use with ultraVU-EL 50mm diameter holder (part UM7005B)
  • Focusing Ring with Coarse Focus Knob and tension adjustment for use with ultraVU-MTPro 45mm diameter holder (50mm holder with insert) (part UM7006B)
  • Focusing Ring with Coarse and Fine Focus Knobs and tension adjustment and focus limit stopper (also suitable for use with our Auto-Microfocus motorised stacking system UM1001C) for use with ultraVU-EL 50mm diameter holder (part UM7007B)
  • Focusing Ring with Coarse and Fine Focus Knobs and tension adjustment and focus limit stopper (also suitable for use with our Auto-Microfocus motorised stacking system UM1001C) for use with ultraVU-MTPro 45mm diameter holder (50mm holder with insert) (part UM7008B)
• Pillar Slide Stop Collar (part UM7009B)

Boom Arm Long Reach versions also include:

• Horizontal Boom Arm 335mmL 25mm Diameter terminating in a lockable, adjustable angle end arbour (25mm diameter) with sliding connector to pillar (part UM7004B)

These are the versions available from the pull down list:
With coarse focus knob on focussing ring:

• UM6000B 350mm pillar stand with 50mm diameter focussing ring with coarse focus knob for ultraVU-EL
• UM6010B 350mm pillar stand with 45mm diameter focussing ring with coarse focus knob for ultraVU-MTPro
• UM6100B 630mm tall pillar stand with 50mm diameter focussing ring with coarse focus knob for ultraVU-EL
• UM6110B 630mm tall pillar stand with 45mm diameter focussing ring with coarse focus knob for ultraVU-MTPro
• UM6200B Boom arm stand with 350mm pillar with 50mm diameter focussing ring with coarse focus knob for ultraVU-EL
• UM6210B Boom arm stand with 350mm pillar with 45mm diameter focussing ring with coarse focus knob for ultraVU-MTPro
• UM6300B Boom arm stand with tall 630mm pillar with 50mm diameter focussing ring with coarse focus knob for ultraVU-EL
• UM6310B Boom arm stand with tall 630mm pillar with 45mm diameter focussing ring with coarse focus knob for ultraVU-MTPro

​​​​​​​​​​​​​​With coarse and fine focus knobs on focussing ring:

• ​​​​​​​UM6400B 350mm pillar stand with 50mm diameter focussing ring with coarse and fine focus knobs for ultraVU-EL
• UM6410B 350mm pillar stand with 45mm diameter focussing ring with coarse and fine focus knobs for ultraVU-MTPro
• ​​​​​​​UM6500B 630mm tall pillar stand with 50mm diameter focussing ring with coarse and fine focus knobs for ultraVU-EL
• UM6510B 630mm tall pillar stand with 45mm diameter focussing ring with coarse and fine focus knobs for ultraVU-MTPro​​​​​​​
• ​​​​​​​UM6600B Boom arm stand with 350mm pillar with 50mm diameter focussing ring with coarse and fine focus knobs for ultraVU-EL
• UM6610B Boom arm stand with 350mm pillar with 45mm diameter focussing ring with coarse and fine focus knobs for ultraVU-MTPro​​​​​​​
• ​​​​​​​​​​​​​​UM6700B Boom arm stand with tall 630mm pillar with 50mm diameter focussing ring with coarse and fine focus knobs for ultraVU-EL
• UM6710B Boom arm stand with tall 630mm pillar with 45mm diameter focussing ring with coarse and fine focus knobs for ultraVU-MTPro

​​​​​​​​​​​​​​Please note that exact specifications and appearance of these products will vary over time and will differ from that specified.  Changes will always be roughly equivalent or better.  All dimensions are approximate.
