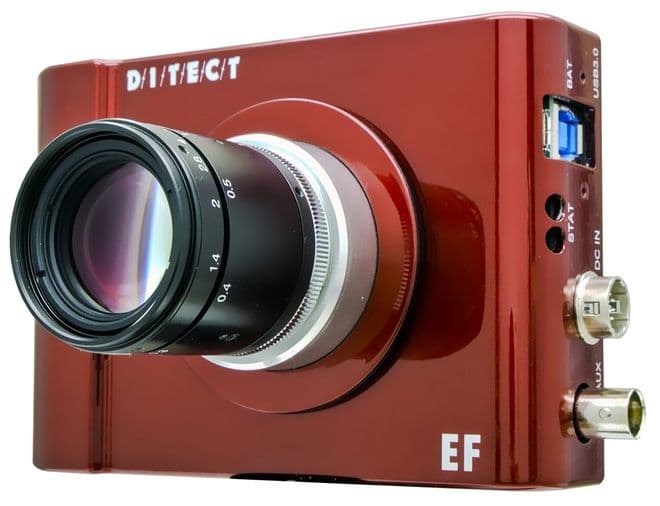

High Speed Camera HAS-EF Fast, Compact, High Resolution, C-Mount USB3 . Max 14k fps

HAS-EF High Speed Camera - Compact, High Resolution
Manufactured by Ditect Japan

Summary

• Choice of colour or monochrome cameras (choose monochrome for higher speeds)
• 500 FPS at 1920x1080 resolution
• Max resolution 2560 x 2048 (5MP)
• 6 GB of internal memory
• Up to 14,000 FPS at 256x32 resolution
• C-mount, minimum 100 micro sec exposure time
• USB 3.0 connection (PC / tablet)
• Multi-camera connection, synchronisation and control are possible
• 12V / 12W
• Size: 45.6mm x 98.5mm x 128mm
• Weight: 0.5 kg
• Supplied System includes: Camera, software, USB 3.0 cable, AC adapter, trigger & sync cables
• Large 1 inch Sensor
• (lens not included, lenses, microscopes and microscope adapters can be supplied)

Description

This high quality Japanese made camera provides a highly flexible system for the capture of events at very high frame rates for playback in slow motion and for image analysis (see analysis software options).

HAS-EF is a high speed camera with 1-inch CMOS sensor and 2560x2048 effective pixels that can shoot 250 fps at full resolution, 500 fps at full HD, 1,400 fps at VGA, and up to 14,000 fps by limiting the pixel area.

Perfect for multiple high speed camera imaging with 6GB embedded memory in one compact solution.
Well suited for all kinds of research / production engineering in behaviour, fluid, sports science, biomechanical, robotics, machine vision, crash test, droplet, microscopy, trouble shooting, and more.

• Battery operation is possible

• 6GB embedded memory allows you to record 3,000 frames at full HD and 20,000 frames at VGA

• Well balanced between high resolution and high frame rates

• Fully synchronised multiple high speed cameras with just one laptop PC

• Internal / External sync

• 12bit A / D

Frame rate and format
Max resolution = 2560x2048
Max fps at max resolution = 250fps
Max fps = 14,000 fps at 256x32
(See Frames per Second Table Image)

Camera control software
Camera control software for PC is supplied free of charge with every camera (see software screenshot).  Functions include live view / rotation / grid display / gain / gamma / bit shift / white balance / pixel interpolation

Example Applications

Production engineering
Press machine/printing machine behaviour, failure cause analysis

Research and development
Crash test, structure collapse, vehicle movement

Image analysis
Any PIV/Motion capture experiment of fast phenomena

Microscopy
Microorganism/sperm/metal stock behaviour
