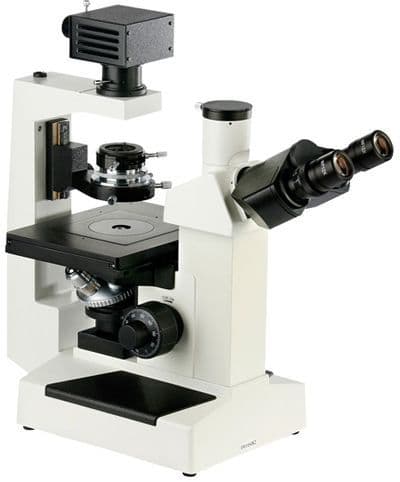

A popular, great value for money Routine and Teaching Grade, High Quality, Biological Inverted Phase Contrast Microscope comprising of:
Trinocular Head includinding a Camera Port with optional adapters to accept a wide variety of cameras, Pair 10X Widefield FN20 Eyepieces and a centering telescope for phase set-up, Inverted Quaduple Nosepiece, 10X Brightfield, 10X Phase, 25X Brightfield, 40X Brightfield, Plan Achromatic, Long working Distance Objectives (other phase objectives are available), Mechanical Stage equipped with a range of petri dish and culture flask holders, ECoaxial Coarse/Fine Focus, Long Working Distance Centerable Phase Condenser with Phase Slider Inserts, Stable Stand, Bright White Halogen Adjustable 6V 20W Light, Set of Filters including frosted, blueand green, Tools and a Large Range of Accessories.

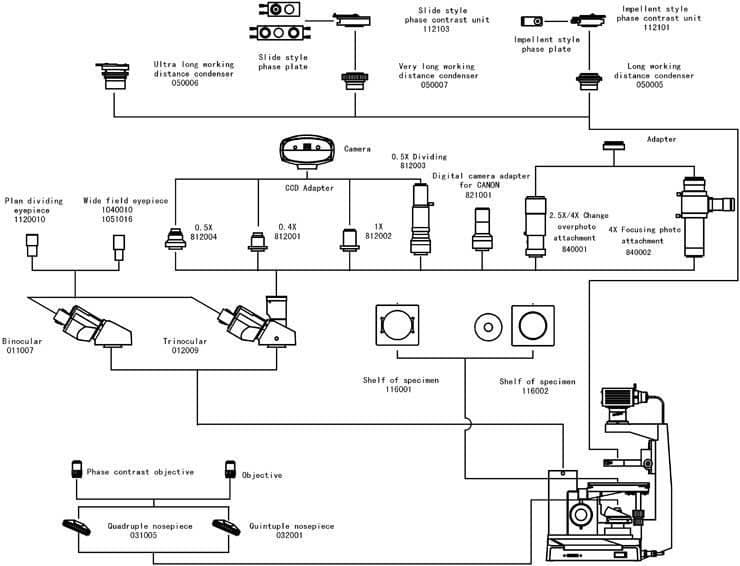

The XDS-1 is a high quality inverted biological microscope representing very good value for money and is designed to be affordable for multiple user sites especially in teaching and research laboratories. Each microscope is equipped with a trinocular head ready for the attachment of a digital camera. The microscopes include a full set of 4 high quality long working distance plan achromatic objectives brightfield and phase objectives on a quadruple objective turret. Specimens can placed on the mechanical stage with a variety of specimen holders and ergonomically positioned controls for XY stage and focus control. The focussing tension can be adjusted and a focus lock protects the objectives from damage. Illumination is provided from an integral halogen lamp with adjustable intensity, a long working distance condenser and phase contrast set. Options include a range of camera adapters, digital cameras, image analysis software, additional objectives and eyepieces.Additional product information
| Brand and ID Number | GX Microscopes Brand by GT Vision Ltd Product ID0456 |
| Eyepieces and Objectives | Pair of 10X Widefield FN20 Eyepieces mounted in a 23.2mm internal diameter eyepiece tube. Centering telescope for phase set-up. Plan Achromatic Optics, 10X Brightfield, 10X Phase 25X Brightfield, 40X Brightfield, Long working Distance Objectives. Objectives are mounted on a Quaduple revolving nosepiece. |
| Head | Trinocular Head with camera port with interpupiliary adjustment and diopter adjustment for the eyepiece tubes. The camera port accepts camera adapters. There is a photo/eyepiece lever. Inclination 45°，camera output has 100% of light. Interpupillary distance adjustment range：48 ~75mm |
| Stand & Focus Mechanism | High stability, robust, inverted microscope stand equipped with a coaxial coarse/fine focus mechanism with sample protection lock. |
| Stage and Condenser | Double Layer, smooth, mechanical stage: size:200mm X 152mm；movement range: 75mm X 30mm , Stage plate holders included: circular petri /culture dishes： rectangular microtitre plates and culture flasks Long working distance phase contrast condenser with slider inserts. Centre adjustable. |
| Illumination | Adjustable, bright 6V 20W Halogen illumination. Includes filter set. |
Customer reviews
| Brand | GX Microscopes |
| Condition | New |
| Product Code | UM1119C |
| Weight | 15kg |
